Tab Down Up POE Ethernet Connector / 1000base T Connector 2X1 With Internal Magnetics

Brand Name : TM

Model Number : TMX21Q16DBI235018

Certification : UL,Rohs,Reach,ISO9001

Place of Origin : Guangdong of China

MOQ : 500 piece

Price : Supportive

Payment Terms : T/T, Western Union, ,Paypal

Supply Ability : 100kpcs /day

Delivery Time : 3 work days

Packaging Details : Tray in Carton

LENGTH : 28.5mm

HOUSING MATERIAL : PBT UL94V-0

CONTACT MATING AREA PLATING : GOLD 6U'' PLATING

CONNECTOR TYPE : BLACK

LED OPTION : LEFT GR,RIGHT GR/OR

NUMBER OF PORTS : 2X1

NUMBER OF CONTACTS : 10

GROUNDING OPTIONS : Panel Ground and PCB Ground

SHIELD PLATING MATERIAL : NICKEL

SHIELD EMI TABS : YES

SHIELD : YES

ROHS COMPLIANT : YES

PANEL STOP : YES

PCB MOUNT ANGLE : SIDE ENTRY

PACKAGE : DIP

CONNECTOR & CONTACT TERMINAATES TO : Printed Circuit Board

LATCH ORIENTATION : LATCH DOWN

Contact Now

100/1000Base-Tx RJ45 single port 2X1 with LEDS Tab Down-Up RJ45 with internal magnetics TMX21Q16DBI235018,28.5mm

RJ45 Without Transformer (TMX21Q16DBI235018) Attributes:

Model Number	TMX21Q16DBI235018
LENGTH	28.5mm
HOUSING MATERIAL	PBT UL94V-0
CONTACT MATING AREA PLATING	GOLD 6U'' PLATING
CONNECTOR TYPE	RJ45
CONNECTOR MATERIAL COLOR	BLACK
LED OPTION	LEFT GR,RIGHT GR/OR
NUMBER OF PORTS	2X1
NUMBER OF CONTACTS	10
GROUNDING OPTIONS	Panel Ground and PCB Ground
SHIELD PLATING MATERIAL	NICKEL
SHIELD EMI TABS	YES
SHIELD	YES
ROHS COMPLIANT	YES
PANEL STOP	YES
PCB MOUNT ANGLE	SIDE ENTRY
PACKAGE	DIP
CONNECTOR & CONTACT TERMINAATES TO	Printed Circuit Board
LATCH ORIENTATION	LATCH DOWN

RJ45 Female Connector (TMX21Q16DBI235018) Applications:

10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,IP phone,internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,

HomePNA,DSL／ADSL and so on.

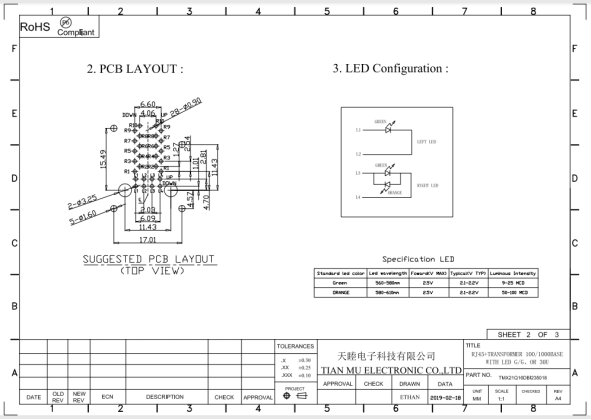

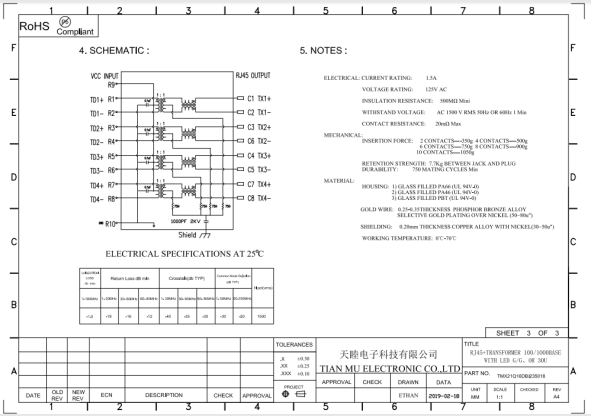

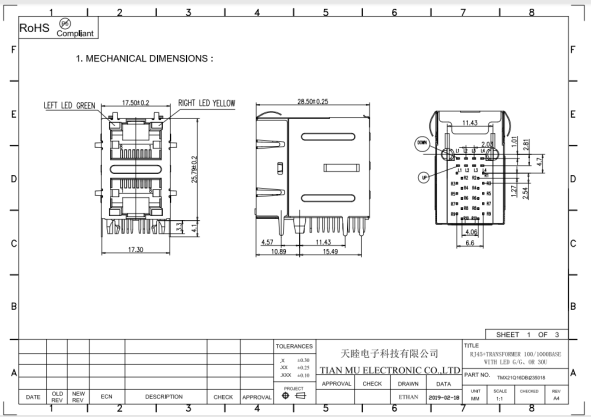

RJ45 Female Connector (TMX21Q16DBI235018) Mechnical Drawing:

Tab Down Up POE Ethernet Connector / 1000base T Connector 2X1 With Internal Magnetics
